Railway Mapping & Monitoring

Elevate into a fully digital 3D maps & model for railway lines. Enabling quick monitoring & decision making.
  • Digital Maps

    • Orthomosaics

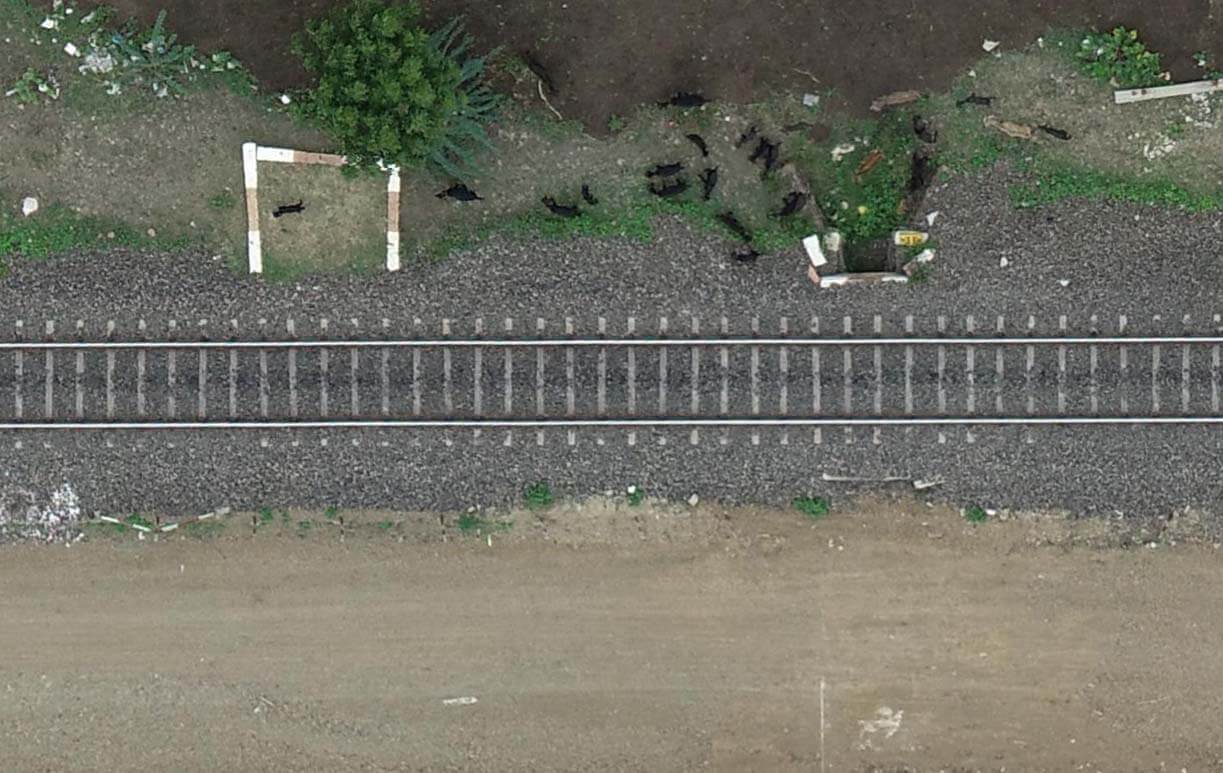

    High resolution geo-referenced imagery & orthorectified mosaics.

    • Resolution Up-to 2CM/Pixel & ability to spot rail fastening system
    • Google Earth overlay supported
    • Format: GeoTIFF, DWG & KML

  • Measurements

    • Measurements

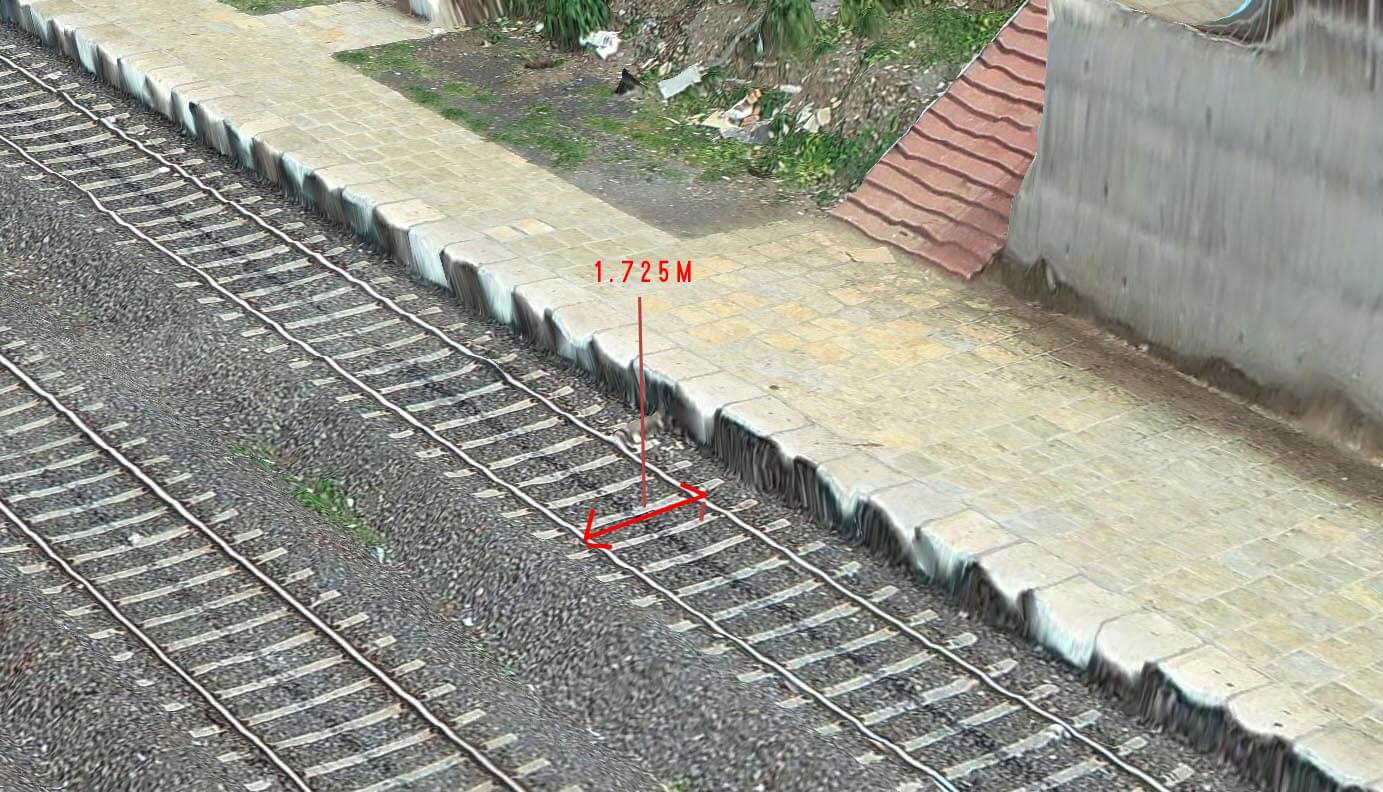

    Acquire a complete set of 2D, 3D, and volumetric measurements of the rail's characteristics.

    • Accurate 2D & 3D measurements is any units
    • Cut & Fill volumetric data of Track Ballast Piles
    • Outputs: PDF & Video Reports

  • Cross Sections

    • Profile Analysis

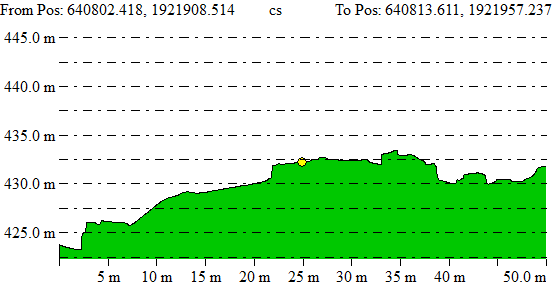

    Cross sections or profiles of the entire rail corridor with any intervals are obtainable.

    • 2D & 3D Cross sections
    • Ability to develop cross section from equal intervals
    • Outputs: AutoCAD DWG & PDF Reports

  • Topography Features

    • GIS Features

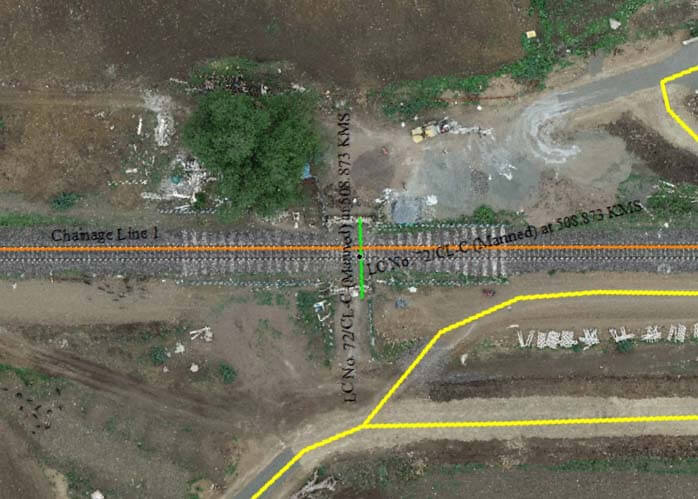

    Topography features such as level crossing, ROBs, RUBs & waterways.

    • Automated & manual marking of features
    • Google Earth Overlay Supported
    • Outputs: KML, SHAPE & DWG
